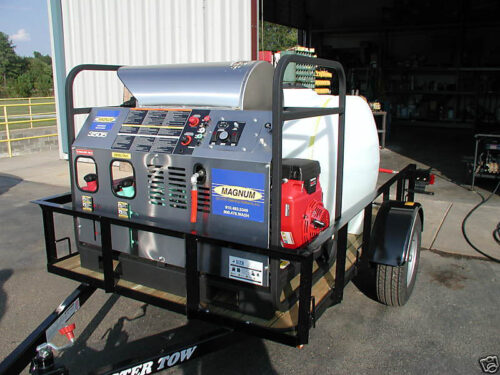

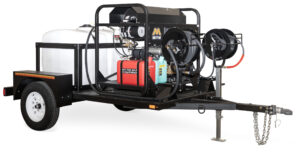

Each unit includes – a 3500psi @ 4.7gpm, Honda Engine Gas Powered, Diesel Fired, Hot Water High Pressure Washer, 100' 5800psi High Pressure Hose, Trigger Gun, 48" Insulated Dual Lance Variable Pressure Wand Assembly, 4 Quick Connect Color Coded High Pressure Nozzles, Matched High Pressure Heavy Duty Summit or COX Hose Reel (Your Choice), 225 Gallon Water Tank Plumbed w/ a Dump Valve, all mounted on a 8' Single 3500lb. Axle Trailer w/ DOT Wiring & Lighting.
Specifications: MAGNUM CTHDS 3505
· Hot or Cold water pressure washer
· 4.7gpm @ 3500 PSI
· Or two guns each operating at approx 2.4 gpm @ 3500psi
· HONDA 20HP Motor
· Belt drive Tri-plex oil bath general pump
· 3600psi safety relief
· Pressure trapping unloader allows single or dual gun operation
· Unloader return / bypass hose routed back to holding tank
· 2600 Watt 110v generator for burner system
· Remote downline / low pressure soap injection
· Three Way valve (easily switch from recycled water tank supply to fresh water inlet)
· Heavy duty Summit or COX Trailer high pressure hose reel
· 100’ R2 wire 5800psi high pressure hose
· Four quick connect nozzles
· 225 Gallon Water tank plumbed with a 2" dump valve for quick draining
Trailer Specifications:
· Single axle 3500lb.
· Dimensions: 5' wide X 8' length
· DOT approved wiring & lights
· Pressure Treated 2×10 Wood Plank Flooring
Warranty Information
· 5 Year coil warranty
· 7 Year back end pump warranty
· Lifetime warranty on head
· 90 Day warranty on wear parts
· 1 year labor warranty
Lifetime Training & Support on any and all systems sold!
Units are Brand New & include manufacturers' warranty (details above).
Technical assistance will be available to the purchaser of the unit.
SYSTEM TYPE: Hot & Cold Water, high pressure, gas powered, skid pressure washer. Unit has appropriate fully automatic safety controls.
Unit conforms with CGA, CSA, &/or ETL Certification.
Manufactured by an American Based Company and must conform to CETA Performance Standards and the Underwriters Laboratories standard for pressure washers – UL-1776.
GENERAL SPECIFICATIONS:
Discharge 4.7 GPM Pressure 3500 PSI Gas Engine 20
HP HONDA ELECTRIC START HOSES: All Hoses 3/8” ID double steel braid type exceeding SAE100R2 performance specifications. Equipped with a swivel and safety protection bend restricting collars. Rated Rated at 5800 PSI at 250° F.
TRIGGER GUNS: Insulated pistol type safety shut off gun supplied shall be rated at 10 gpm, 5000 psi, and 300° F. Constructed from Fiberglass – reinforced polyester with brass and stainless steel valves and seats.
WANDS: A 48” variable pressure dual lance wand with insulated grab handle on wand for operator protection.
NOZZLES: Appropriate high pressure nozzles for single gun operation shall be supplied in 0° 15° 25° & 40° flat spray pattern. The nozzles shall be of a through hardened 420 stainless steel material with an interlock coupler nipple made of annealed 303 stainless steel with 80 Rockwell hardness rating.
DRIVES: Belt drive system with cast iron bushed bore pulley, grip notch V-section size B belts, and adjustment plate for proper belt tension and alignment. All belts to be covered by safety machine cover.
HIGH PRESSURE PUMP: Triplex, Ceramic plunger, oil bath crankcase type with forged brass head, mounted on a vibration isolation deck. Pump bypass loop shall be equipped with 145° thermal relief valve.
UNLOADER VALVE: The pressure washer shall be equipped with a pressure trapped unloader valve suitable for single gun operation rated for a minimum of 8 gpm at 3900 psi.
FRAME: Unit protected by a heavy square tube steel frame. Stainless Steel Coil Wrap, Control Panel & Front Panel. Components to be located for ample service/inspection accessibility. All painted material will be painted with a "Hammerite" Powder Coated finish.
CONTROLS/GAUGES:
Unit has a control panel with the following:
·Vinyl operating instructions and safety information in English and Spanish, attached by a high strength waterproof adhesive. ·Rocker burner on/off switch with silver contacts.
·Remote Low Pressure Chemical Injection.
HOSE QUICK CONNECTIONS: Quick couple connectors with stainless steel retainer ring & support balls.
BURNER ASSEMBLY: Heating Chamber is a continuous heating coil type, diesel fired.
HEATING COIL: High test ASTM A53 Schedule 80 spiral helix wound coil, with a material thickness of .140 in., pipe dimension .854 od. Coil contains hot gas baffling for unparalleled coil efficiency. Welding done to ASME standards. The heating coil shall be insulated with a fiberfrax ceramic blanket, # 6 density, 1 in. thick. The entire coil will be surrounded our exclusive cold coil wrap.
SAFETY RELIEF VALVE: A high pressure safety relief valve shall be installed as a secondary safety device in the event an over pressurization condition occurs. This device shall be located at the outlet of the pump and shall be set at 3900 psi.
SAFETY FLOW SWITCH: Shall be located on cold water side to prevent thermal damage. This safety switch will be hermetically sealed to prevent moisture damage.
WATER SUPPLY SYSTEM: A poly water tank with automatic float shut-off valve shall be permanently mounted to unit w/ a three way selection valve to supply water from the bulk water tank or system float tank. The float tank may also be utilized as the anti-freeze protection holding tank. The special design meets back-flow prevention standards as they apply to this type of equipment.
Shipping – Shipping to most states is roughly $2.95 per mile. CONTACT US FOR A FREE NO OBLIGATION FREIGHT QUOTE – 1.800.476.9274.
