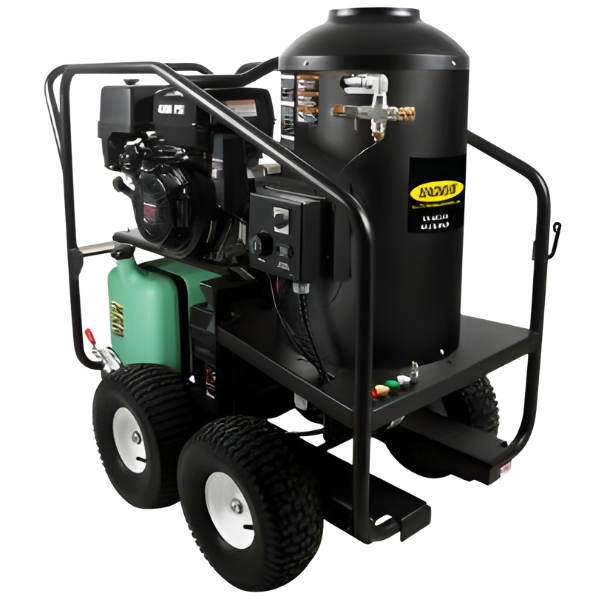

DHG-4004-B0H6G
Pump
– Direct or belt drive triplex piston General pump with ceramic plungers
– Stainless-steel and brass unloader valve, adjustable
– Forged brass manifold
– Thermal relief valve Engine
– Performance proven engine with low-oil protection
– 12V electric start (battery not included)
Frame
– Reinforced powder coated steel tube frame with center balanced lifting hook
– 15-inch pneumatic tires
Components
– 1⁄2-inch schedule 80 pipe coil with 4-pancake bottom-fired heat exchanger
– 12V Beckett burner
– No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel)
– Adjustable thermostat
– Hour meter
– 250°F steam
Miscellaneous
– Temperature rise 130°F/54°C above ambient, maximum outlet temperature is 210°F
– Water output temperature is 250°F in “wet” steam
Unit Includes:
– Quick connect nozzles
– 0°, 15°, 25° and 40°
– 1⁄4-inch MEG and 1⁄4-inch MQC wet steam nozzle – 25°
– 50-foot x 3⁄8-inch steel wire-braided high pressure hose with quick connects, swivel and bend restrictors
– Adjustable pressure insulated dual lance
– Professional-grade insulated trigger gun with safety lock-off
